A schema language is a formal language for describing the structure, constraints, and data types of a configuration. Miru config schemas are defined in a supported schema language to validate configurations before deployment.Currently, the following languages are supported:
This section covers key integration points for a each language. For more general information about the strengths and weaknesses of each language, check out our blog post comparing JSON Schema, CUE, and Protocol Buffers: Config Wars.
JSON Schema is probably the most popular schema language. With origins dating back to 2010, JSON Schema was originally built for API validation, but has since found its way into configuration systems across web, cloud, and robotics infrastructure.
Below is an example JSON Schema to give you a flavor of what JSON Schema looks like.
JSON Schema
Copy
Ask AI
$schema: "https://json-schema.org/draft/2020-12/schema"title: Communication Configuration Schematype: objectrequired: - control_loop_rate_hz - watchdog_timeout_ms - network - logging - error_handlingproperties: control_loop_rate_hz: type: integer description: Control loop frequency in Hertz minimum: 1 maximum: 1000 default: 50 watchdog_timeout_ms: type: integer description: Watchdog timeout duration in milliseconds minimum: 100 maximum: 5000 default: 500 network: type: object required: - max_latency_ms - connection_timeout_ms - reconnect_attempts - reconnect_interval_ms - heartbeat_interval_ms properties: max_latency_ms: type: integer description: Maximum acceptable network latency in milliseconds minimum: 10 maximum: 1000 default: 100 connection_timeout_ms: type: integer description: Connection timeout duration in milliseconds minimum: 100 maximum: 10000 default: 2000 reconnect_attempts: type: integer description: Number of reconnection attempts minimum: 1 maximum: 10 default: 3 reconnect_interval_ms: type: integer description: Interval between reconnection attempts in milliseconds minimum: 100 maximum: 5000 default: 1000 heartbeat_interval_ms: type: integer description: Interval between heartbeat messages in milliseconds minimum: 50 maximum: 1000 default: 250 logging: type: object required: - enable_packet_logging - log_level - max_log_size_mb - retain_logs_days properties: enable_packet_logging: type: boolean description: Enable or disable packet logging default: true log_level: type: string description: Logging level enum: ["debug", "info", "warn", "error"] default: "info" max_log_size_mb: type: integer description: Maximum log file size in megabytes minimum: 1 maximum: 1024 default: 100 retain_logs_days: type: integer description: Number of days to retain log files minimum: 1 maximum: 90 default: 30 error_handling: type: object required: - max_consecutive_failures - failure_timeout_ms - enable_auto_recovery properties: max_consecutive_failures: type: integer description: Maximum number of consecutive failures allowed minimum: 1 maximum: 20 default: 5 failure_timeout_ms: type: integer description: Timeout duration for failure handling in milliseconds minimum: 100 maximum: 30000 default: 5000 enable_auto_recovery: type: boolean description: Enable or disable automatic recovery from failures default: true
Although many of JSON Schema’s capabilities are omitted in this example, you’ll find some of the most common keywords including:
$schema - specifies the JSON Schema draft version
type - the data type of a property
required - signals that a property is required
properties - the sub-fields of an object
default - the default value of a property
description - the description of a property
enum - a constrained list of allowed values for a property (only for string types)
minimum - the minimum value of a property (only for numeric types)
maximum - the maximum value of a property (only for numeric types)

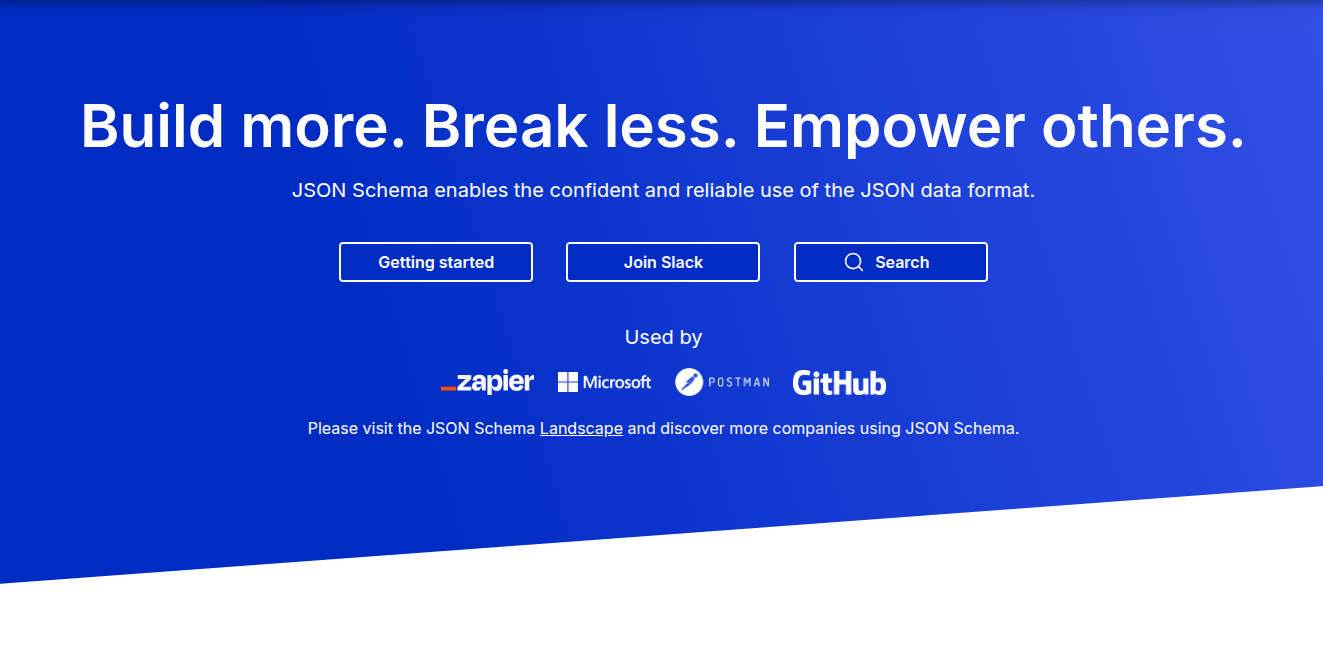

For a comprehensive list of JSON Schema keywords, visit the official JSON Schema website. We also find the official test suite highly useful, containing a vast number of simple JSON Schema examples.
While JSON Schema has a variety of drafts, only Draft 2020-12, the most recent stable draft, is supported.When specifying the $schema keyword in a schema (which is recommended), it must be set to the following value:
The full suite of Draft 2020-12 keywords are supported.For a comprehensive list of JSON Schema keywords, visit the official JSON Schema website. We also find the official test suite highly useful, containing a vast number of simple JSON Schema examples.
While JSON Schema was originally built for JSON data, it is not exclusive to JSON. As you may have noticed, we’re partial to writing JSON Schema in YAML for readability (no excessive brackets and we can use comments!).JSON Schema can be written in the following formats:
JSON (.json)
YAML (.yaml, .yml)
Schemas defined in JSON Schema can validate instances in the following formats:
JSON (.json)
Support for more instance formats including YAML and JSON-C are coming soon.
The format of a schema does not need to match the format of the config instance it validates. For example, a YAML formatted JSON Schema can validate a JSON formatted config instance.
CUE (Configure, Unify, Execute) is another opens-source schema language, useful for defining valid fields, types, and values for a config.CUE was developed at Google by Marcel van Lohuizen, one of the original creators of Go. The original motivation stemmed from Google’s internal struggles in managing complex, large-scale configurations for infrastructure and applications. JSON and YAML were too weak for expressing constraints, logic, or composition, so CUE set out to solve that.Instead of building and managing external tools to validate, patch, or generate configs, CUE itself is a fully programmable config engine. This means CUE wholly encapsulates the configuration data, the schema, and the logic (how to derive those config values).
Below is an example CUE schema to give you a flavor of what CUE looks like.
CUE
Copy
Ask AI
@miru(config_type="communication")control_loop_rate_hz: number & >=1 & <=1000 | *50watchdog_timeout_ms: number & >=100 & <=5000 | *500network: { max_latency_ms: number & >=10 & <=1000 | *100 connection_timeout_ms: number & >=100 & <=10000 | *2000 reconnect_attempts: number & >=1 & <=10 | *3 reconnect_interval_ms: number & >=100 & <=5000 | *1000 heartbeat_interval_ms: number & >=50 & <=1000 | *250}logging: { enable_packet_logging: bool | *true log_level: "debug" | "info" | "warn" | "error" | *"info" max_log_size_mb: number & >=1 & <=1024 | *100 retain_logs_days: number & >=1 & <=90 | *30}error_handling: { max_consecutive_failures: number & >=1 & <=20 | *5 failure_timeout_ms: number & >=100 & <=30000 | *5000 enable_auto_recovery: bool | *true}
Although many of CUE’s capabilities are omitted in this example, you’ll find some of the most commonly used features including:
type specification - number, string, bool, etc.
numeric constraints- >=, <=, ==, !=, =~, !~, etc.
default values - | *value
enumerations - | "value1" | "value2" | "value3"
intersection of constraints - &

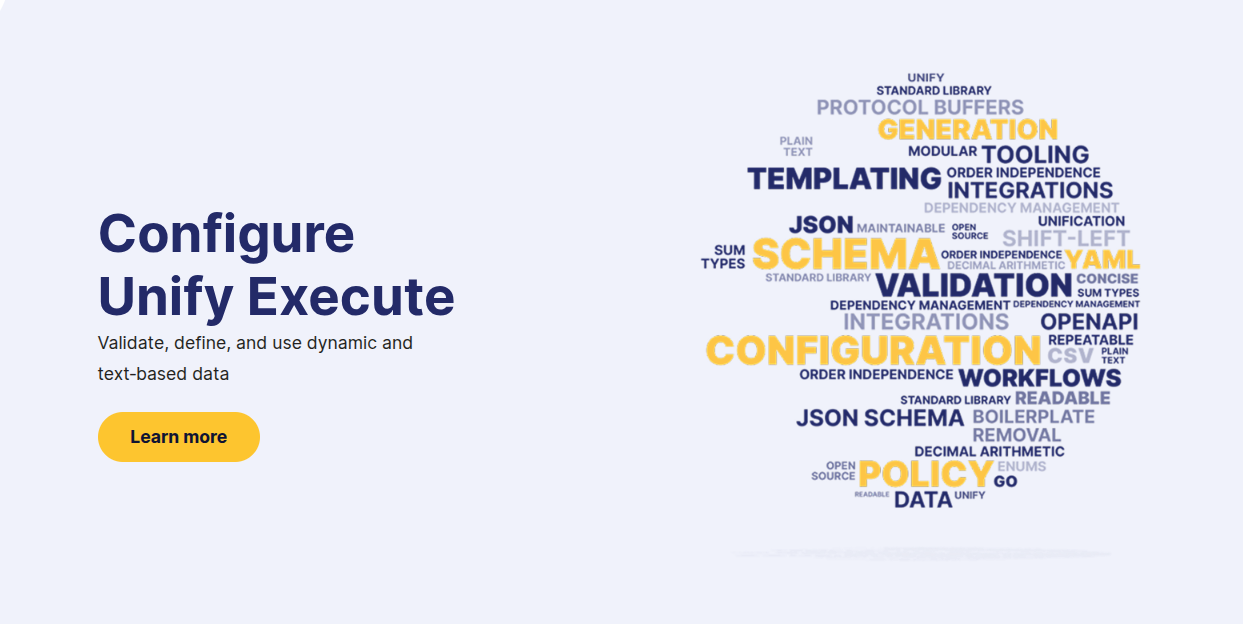

As you can see, CUE inlines constraints directly with type definitions, making schemas significantly more concise than JSON Schema. For more information on the supported features of CUE, visit the official CUE website.
